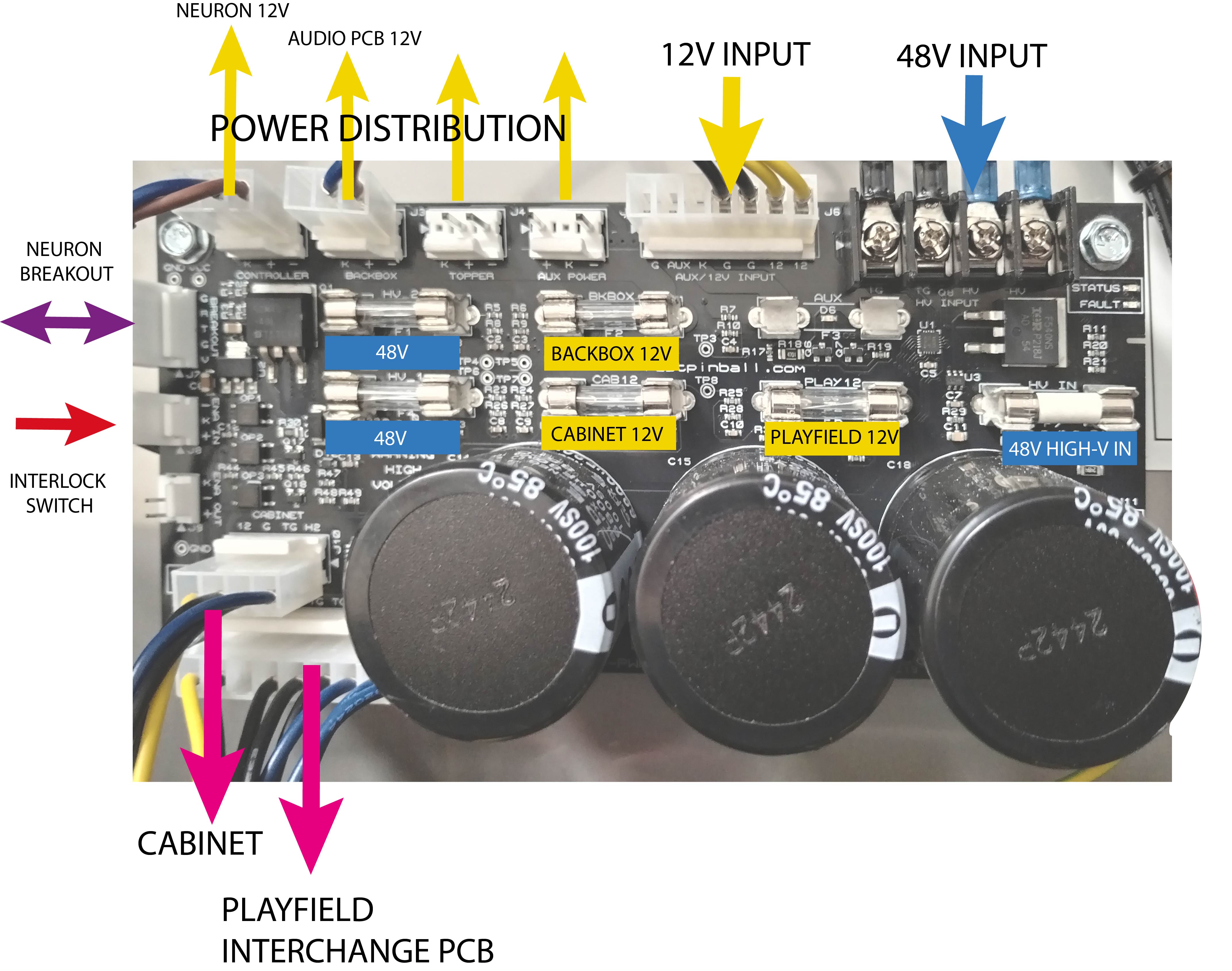

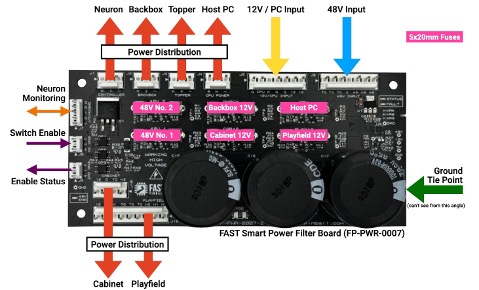

FAST Smart Power Filter Board FP-PWR-0007
Fuses size is 5x20mm
F1 48V -6.3amp 250 Slo-Blo
F2 BACKBOX -4amp 250 Slo-Blo
F3 HOST PC -3.15amp 250 Slo-Blo
F4 48V -6.3amp 250 Slo-Blo
F5 CAB12 -2.5amp 250 Slo-Blo
F6 PLAY12 -5amp 250 Slo-Blo

IF you do not see the green light under the HOST PC fuse number 2 don't worry, is normal. That power output is not used.

In case one of your fuses are blown, you can find spare ones in your goodie box.
